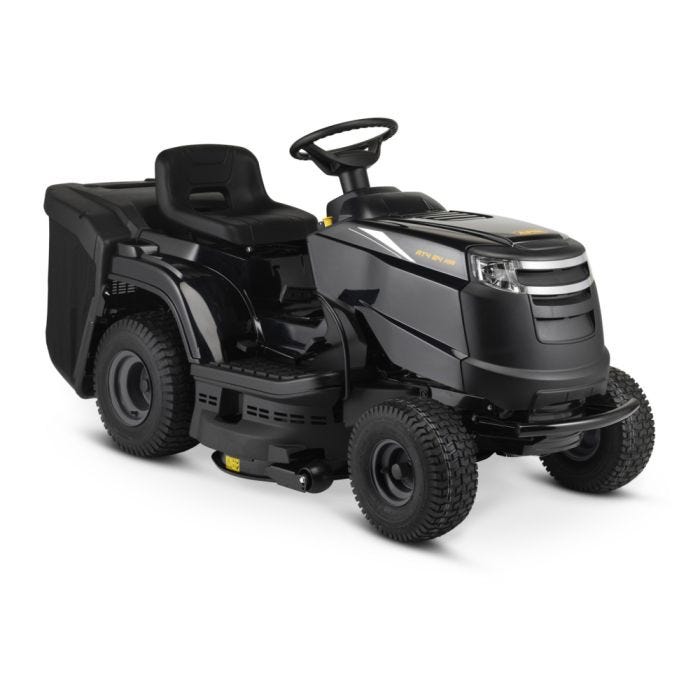

AT4 84 HA

Petrol tractor

The AT4 84 HA comes with an 84cm cutter-deck and is powered by a high-performance 414cc STIGA single-cylinder engine. It features a hydrostatic transmission and collects clippings in a spacious 200-litre catcher. Optional mulch-kit available.
  • Can collect up to 200 L cut grass
  • Reliable and strong STIGA single-cylinder engine
  • 84 cm cutting deck allows you to easily manage gardens up to 3500 m2
  • Choose among 7 possible cutting height settings, to better fit your lawn's needs
  • Effortless blade engagement through electromagnetic PTO clutch
Tax Included

Product details and specs

AT4 84 HA detail 9
AT4 84 HA detail 10
With the Alpina AT4 84 HA Lawn Tractor, you’ll get powerful performance, excellent versatility and superior driving-comfort, all at an affordable price!
Delivering that powerful performance is a 414cc STIGA ST400 single-cylinder four-stroke motor that’s rated at a substantial 6.3 kW; and which will prove quiet, clean, smooth and economical in operation, thanks to Alpina’s overhead-valve technology.
The AT4 84 HA has a foot-pedal-controlled hydrostatic drive; a desirable feature that enables you to control the ground-speed much like you would with an automatic-transmission car - the more pressure you apply to the pedal, the faster you’ll go!
A front-mounted bumper works to prevent engine-damage in the event of accidental impact; while an electromagnetic power-take-off clutch makes starting and stopping the blades an effort-free process.
Offering three mowing-modes - bagging; rear-discharge; mulching - and seven preset cutting-heights, the flexible AT4 84 HA can be configured to produce fantastic results, no matter what grass-conditions you’re faced with.
It’s equipped with bright but energy-efficient LED headlights, so it can be safely driven when the ambient light’s poor; and it benefits from a series of gauge-wheels that ensure the edges and corners of the deck won’t mark the turf when you’re executing turns on uneven ground.
This model has a relatively compact 84cm working-width and comes with a largest-in-class 200-litre collector.

Technical specs

General info
EAN/UPC
8008984851344
SKU
2T2100404/A22
Power
Battery capacity
18 Ah
Power
6.3 kW
Power source
Petrol
Engine Brand
STIGA
Engine model
ST 400 Powered by STIGA
Displacement
414 cm³
Engine rotation speed
2400 rpm
Battery Voltage
12 V
Choke
Manual
Engine cooling
Air
Fuel tank capacity
6 l
Suggested working area
3500 ㎡
Cutting system
Minimum uncut radius
80 cm
Cutting width
84 cm
Reverse mowing
Yes
Blade rotation
Untimed
Cutting height adjustment
Manual with lever
Cutting height positions
7 positions
Cutting height range
25 - 80 mm
Number of blades
2
Additional cutting method
Rear discharge, Mulching
Blade engagement type
Electric
Drive system
Traction
Rear-wheel drive
Transmission
Transmission method
Pedal-operated
Transmission type
Hydrostatic
Equipment
Collector emptying
Manual
Collector capacity
200 l
Steering wheel
Alpina ergonomic
Seat type
Alpina smart with low back support
Seat adjustment
Screws
Dashboard
Yes with LED
Front wheel size
15x6.00-6
Rear wheel size
18x8.50-8
Headlights
Conventional
Bumper
Yes
Washing link
Yes
Collector type
Textile
Storage compartment
Yes
Cup holder
Yes
Pivoting front axle
Yes
Antiscalp wheels
2
Safety system
Seat with Safety Contact Breaker
Tools kit
Mulching kit
Optional
Battery charger
Optional
Trailer hitch kit
Optional
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A)
100
Max vibration on driver's seat (m/s2)
1.06
Max vibration on steering wheels (m/s2)
6.37
Measured sound power level dB(A)
100
Measured sound pressure level at operator ear dB(A)
86
Overall dimensions
Pack weight
230.5 kg
Product length
2338 mm
Product width
880 mm
Product height
1100 mm
Product weight
167 kg

Related Accessories

10 products

Support

What is the proper way to clean the lawn tractor after mowing the grass?
The exterior of the tractor mower must be cleaned with water and detergent, paying attention not to get water in the electrical system, motor and circuit board located under the instrument panel. The collection bag should be emptied and cleaned of residue, then remounted so the cutting assembly can be washed, and then removed, rinsed and allowed to dry. When washing the cutting device assembly and the expulsion chute, the collection bag or rear discharge shield must be fitted, the operator must be seated, the cutting device assembly must be in position “1”, the engine running, transmission placed in neutral and the cutting device must be connected. Then connect a water hose to the appropriate pipe fittings and allow the water to flow for a few minutes while keeping the cutting devices in motion.
What action should be carried out before winter storage or before storing it for a period longer than 30 days?
After allowing the engine to cool down and fully recharging the battery, disconnect the battery cables and store it in a cool and dry place. Empty the fuel tank, clean the machine thoroughly, check the condition of the cutting device assembly, and, if necessary, contact the service centre. Then store the lawn tractor with the cutting deck in a lowered position, in a sheltered environment and, if possible, covered with a sheet.
What action should be carried out before initially using a riding tractor that has been stored over a winter or for a period longer than 30 days?
Refuel it and check the oil level, air filter and petrol filter. Check that the tyres are correctly pressurised and then set up the lawn mower tractor according to how you intend to carry out the mowing (side discharge, collection, rear discharge, mulching). For further information about the preliminary operations and safety checks, please refer to the designated sections of the instructions manual.
What standard maintenance operations does the lawn mower tractor need?
Before each use, we recommend that you perform safety and control checks, check the tyre pressure, and replenish the fuel and oil tank, if necessary. After each use, arrange for a general cleaning of the riding tractor. Please refer to the designated section of the instruction manual (“maintenance table”) for the regular actions recommended to ensure optimal use of the machine.
What are the cutting functions of the lawn tractor?
The riding tractor can be set up in different cutting modes: rear bag collection or rear discharge, or mowing and chopping the grass using the special “mulching kit” function. The mulching cutting system allows you to mow the grass into fine particles, which remain on the lawn, restore nutrients and support growth.
What kinds of parts and accessories can the tractor lawn mower be equipped with?
The lawn tractor can be equipped with various parts and accessories to increase its functions and ensure maximum versatility all year round. For the complete list of parts and accessories, please refer to the relevant product page on the website.

Reach Information

Information on Article 33 of REACH Regulation concerning STIGA Group products. Discover more

Reach Information


AT4 84 HA
382722476/0 PC BOARD MP84 (ISO) Waterwei Lead 7439-92-1
118120007/0 BATTERY 12V 18AH [HAIJIU] Lead 7439-92-1
118400921/0 HYDRO TRANSAXLE T2-ADBF-2X3C-1RX1 1) SEALANT MATERIAL : Octamethylcyclotetrasiloxane
2) PLUG 9/16-18 METAL: Lead
3) ROD BYPASS .375 X 3.81: Lead
4) CHK PLUG ASSY/WASHER,.027": Lead
5) CHK PLUG ASSY/WASHER,.027": Lead
6) FITTING 5/16 SAE, 5/32 TUBE: Lead
1) 556-67-2
2) 7439-92-1
3) 7439-92-1
4) 7439-92-1
5) 7439-92-1
6) 7439-92-1
125601577/0 PULLEY Lead 7439-92-1
382004618/0 DECK ENGAGE CABLE Lead 7439-92-1
