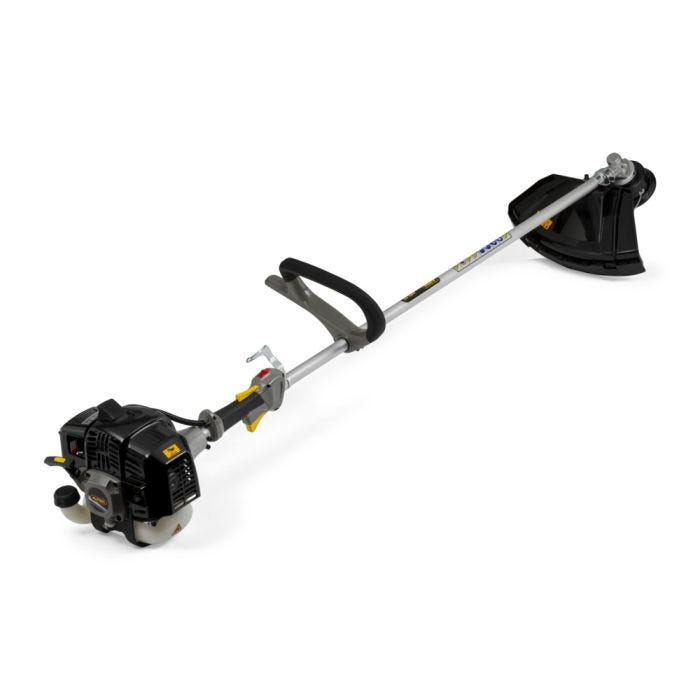

ABR 32

Petrol lawn trimmer / brushcutter

The right machine to face overgrown grass, thanks to its 32.6cc petrol engine and loop handle, improving comfort. Maintenance is extremely easy.
  • Perfect to cut wildly grown grass and thick vegetation, thanks to included blade
  • Equipped with a 32,6 cc petrol engine
  • Comfortable and ergonomic loop handle
  • Easy start system for engine starting, even with low temperatures
  • Tap&Go nylon head makes maintenance very easy
  • Single harness included, to enhance comfort
Tax Included

Product details and specs

With its high-capacity 32.6cc two-stroke Easy Start engine developing an impressive 0.9kW (1.2hp), the Alpina ABR 32 will enable you to take a more aggressive approach to domestic grass-trimming and brush cutting applications!
Designed with operator-comfort to the fore, the ABR 32 weighs just 8.3kg and combines an ergonomically-optimized ‘loop’ handle with a fatigue-limiting single-shoulder harness.
The ABR 32 comes with a twin-line trimmer-head and three-tooth metal blade, so you can fit the one that best suits the job-type.
Also featured is a large-diameter drive-shaft (26mm) that ensures the maximum amount of torque reaches your chosen cutter-head.

Features

Bump-Feed Line Head
Advance the line by simply tapping the cutter-head on the ground!
Start cutting!
Easy Start makes getting going fast and stress-free.

What's in the box

ABR 32
ABR 32
Petrol lawn trimmer / brushcutter
  • lensNylon head
  • lensMetal blade
  • lensHarness
  • lensPlastic bottle
  • lensScrewdriver
  • lensSocket spanner

Technical specs

General info
EAN/UPC
8008984833395
SKU
287220004/A20
Power
Power
0.9 kW
Power source
Petrol 2-stroke
Displacement
32.6 cm³
Engine rotation speed
11000 rpm
Maximum engine speed
11000 rpm
Idling speed (+/- 100)
3100 rpm
Starter
Easy start recoil
Primer
Yes
Choke
Manual with automatic return
Fuel tank capacity
0.8 l
Carburettor type
Butterfly valve
Ignition coil type
Analogic
Air filter type
Paper
Cutting system
Nylon line diameter (millimeter)
2,4
Cutting width
43 cm
Nylon head type
Tap & Go dual line
Nylon line length
4 m
Blade type
3 T
Blade diameter
255 mm
Equipment
Handle type
Loop
Vibe Control System (VCS)
Yes
Shaft type
Straight
Shaft tube diameter
26 mm
Inner shaft diameter
8 mm
Soft grip handle
Yes
Harness
Single
Tools kit
Included tools kit
Spark plug key, screwdriver
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A)
114
Measured sound power level dB(A)
112.6
Measured sound pressure level at operator ear dB(A)
98.5
Vibration level front handle (m/s2)
5.26
Vibration level rear handle (m/s2)
6.6
Overall dimensions
Pack weight
12.6 kg
Product weight without cutting system
7.4 kg
Product length
1880 mm
Product width
385 mm
Product height
348 mm
Product weight
8.3 kg

Support

What kind of protective gear should I use?
Using this brushcutter petrol requires clothing that protects the legs and face from objects that could unexpectedly be thrown out during operation. It is always recommended to wear long trousers and a protective visor.
What kind of maintenance should I carry out?
To ensure that the brush cutter is functioning correctly and to maximise its lifespan, we recommend regular (based on the frequency and intensity of use) cleaning of the air filter, sparking plug and cutting head (trimmer head and guard) – parts where a lot of dirt constantly builds up.
Remember that it is important to consult the user and maintenance manual for details of each of these tasks.
Which type of grass and shrubs can you work on?
This petrol brush cutter is able to tackle coarser plant conditions, from dense bushes with tall grass to shrub areas, where you can also cut the more stubborn plants and shrubs using the supplied metal blade.
How do you adjust the length of the line?
This model is fitted with a head using the Tap&Go system. This means that, while the machine is operating, you just have to press the control lever all the way to bring the head to maximum rotation and at the same time knock the head against the ground, which causes the line to feed out automatically. Its length can be adjusted simply, by cutting any excess to the length of the cutting blade located on the end of the guard.
For further information, see the instruction manual.
The line no longer feeds out from the head. What might have happened?
The line failing to feed out may be associated with two main factors. The first, and the most likely, is that the line might be all used up and should therefore be replaced with a new reel. There is also the possibility that the line within the head has accidentally become caught in its own windings, and is preventing the end from freely feeding out through the holes. In this case, simply open the head and re-spool the line correctly inside.
These causes and solutions normally cover the majority of cases, but there may be a variety of others, associated with the methods of use, the surface treated and the weather conditions.
Note that consulting the user manual, in the section relating to the cutting head, may provide useful information for identifying the nature of the problem.
