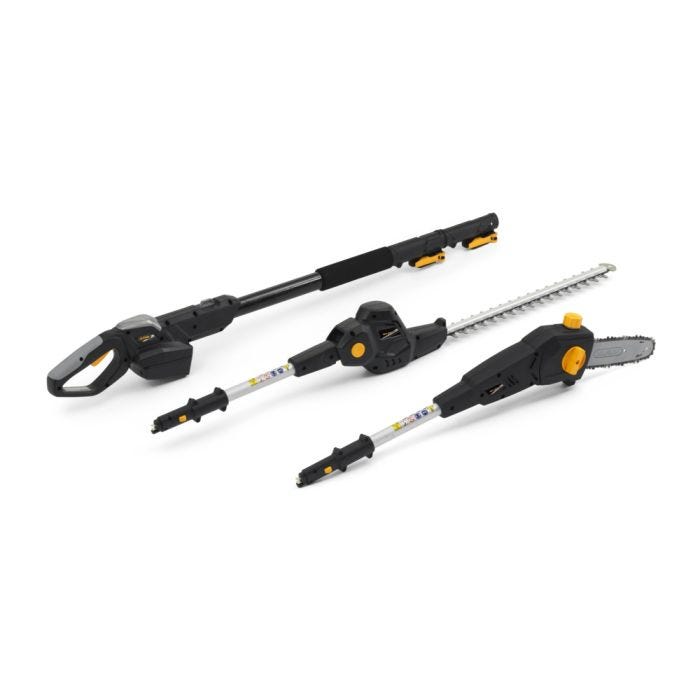

AM 20 Li Kit

Battery multi-tool

A 20V, two-in-one multi-tool that will enable you to trim and prune at height! Comes with the following attachments: hedgetrimmer; chainsaw head.
  • Equipped with a cutting-edge 20V (4Ah) lithium-ion battery
  • Extendable shaft – get a maximum reach of 4m (person's body + tool)
  • Compact 20cm chainsaw pruner head with automatic chain lubrication
  • 45cm double-sided hedgetrimmer attachment with a generous 18mm tooth spacing
  • Hedgetrimmer blades rotate through 112° to suit any application
  • Battery and charger included
  • Battery kit included
Tax Included

Product details and specs

AM 20 Li Kit detail 10
AM 20 Li Kit detail 11
AM 20 Li Kit detail 12
AM 20 Li Kit detail 13
AM 20 Li Kit detail 14
AM 20 Li Kit detail 15
AM 20 Li Kit detail 16
AM 20 Li Kit detail 17
AM 20 Li Kit detail 18
AM 20 Li Kit detail 19
AM 20 Li Kit detail 20
AM 20 Li Kit detail 21
Cut-back high, light-blocking branches and trim the tops of tall hedges from the safety and comfort of the ground with the Alpina AM 20 Li Kit cordless multi-tool!
At its heart is a 20V (4Ah) lithium-ion battery that provides cable- and fume-free power; and which offers the sort of rapid charge-times and extended run-times that makes lithium-ion the technology of choice for the discerning gardener.
The AM 20 Li Kit is based around a lengthy telescopic shaft that will enable you to access all but the very highest branches and hedge-tops without having to use ladders.
Easy to control and manoeuvre for any operator, the AM 20 Li Kit comes with a comfort-enhancing shoulder harness that facilitates long periods of low-effort trimming and pruning.
Balance-optimising battery positioning ensures excellent handling; while an ergonomically sculpted handle and light-touch trigger mean you’ll have a comfortable grip at all times.
No tools are required to switch attachments.
Battery compatible with all Alpina 20V cordless machines.
Hedgetrimmer Attachment:
The hedgetrimmer attachment runs for up to 70 minutes on one charge and has a sizeable 18mm tooth-gap that makes it possible to trim thicker, woodier growth with no blockages or stalling.
The blades measure 45.5cm in length and are double sided for fast bi-directional cutting.
Pruner Attachment:
The pruner attachment comprises a 20cm guide-bar and benefits from a compact design that makes it ideal for use in space-restricted situations.
Features include an automatic pump that delivers a constant supply of oil to the bar and chain; and a branch-support bumper for neat, accurate results.
Chainsaw attachment run-time is around 20 minutes.

What's in the box

AM 20 Li Kit
AM 20 Li Kit
Battery multi-tool
  • lensBattery
  • lensBattery Charger

Technical specs

General info
EAN/UPC
8008984864627
SKU
271724104/A24
Power
Battery capacity
4 Ah
ePower
Yes
Power
0.28 kW
Power source
Battery
Voltage
20 Volt
Battery kit
Included
Motor type
With brushes
Power (hedger function)
0.15 kW
Power (pruner function)
0.28 kW
Maximum motor speed
2600 rpm
Lithium battery nominal energy
72 Wh
Hedger working time (+/- 20%)
75 m
Pruner working time (+/- 20%)
20 m
Cutting system
Cutting length
415 mm
Blade length
45.5 cm
Blade type
Dual action
Blade teeth speed
2600 spm
Teeth distance
26 mm
Bar type
Sprocket nose
Bar length
20 cm
Bar length (inches)
8 in
Chain type
91PX- 033X
Chain speed
5 m/s
Chain oil tank capacity
0.115 l
Chain oil pump
Automatic
Chain tensioning system
Side screw tensioning
Equipment
Handle type
Rear handle
Vibe Control System (VCS)
No
Shaft tube diameter
26 mm
Lawn trimmer attachment
No
Hedger attachment
Yes
Shaft extension
55 cm
Harness
Single
Pruner attachment
Yes
Tools kit
Battery charger
Single standard
Battery charger output current
2 A
Battery charger plug type
Europlug (Type C)
Overall dimensions
Pack weight
5.23 kg
Product length
2540 mm
Product width
90 mm
Product height
170 mm
Product weight
4.67 kg
